Portable Machines: Portable Marking Solutions

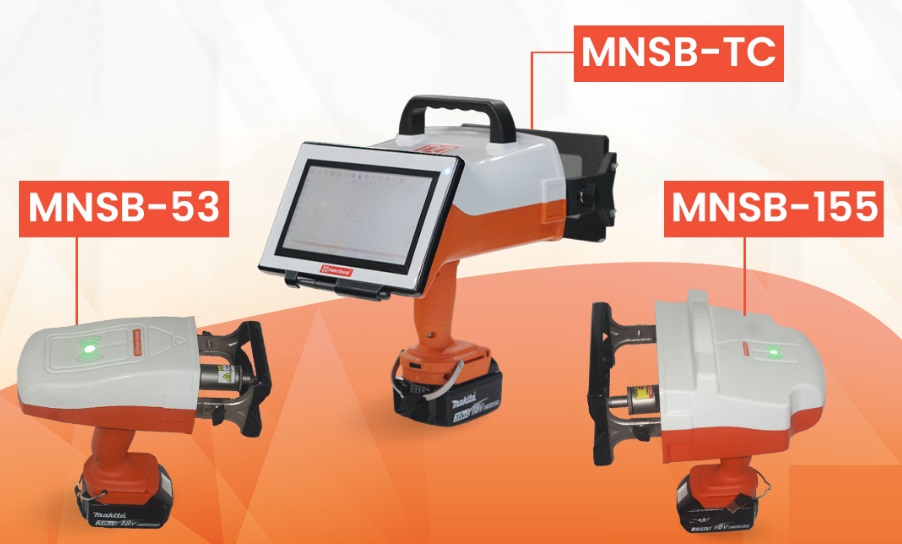

Cordless Mobile Hand Engraving Machine

Current range of hand engraving machines have wide operational scope with many challenges. These machines are subject to very rough use in extreme environments. Existing portable machines with mounted keyboards and touch screens are susceptible to damages. They achieve better usability but with high maintenance. The application areas where portable machine demands long operational hours, require them to have powerful battery. Besides if metal components are at isolated location, the machine should be light weight. Such contradictory challenges limits the usage and hampers efficiency of hand engraving machines.

Our team has won over these challenges with MNSB – 53. It has set a unique standard with a combination of weighing only 2.5 kgs and a power packed battery of 5 amp/hr. User can achieve more than 3 hours of continuous marking and around 8 hrs of normal marking. Frequency of changing battery is once within shifts, achieving least downtime. Its compact carrier makes it easy to carry anywhere.

The best part of MNSB-53  Hand engraving machine is, it has seamless connectivity with any wifi enabled device. User can connect own mobile to machine and create a design with our advanced mobile app. User can transfer the design using WiFi and begin work in no time. Its unique in app locking feature provides for highest security.

A MNSB-53  Hand engraving machine launcher app ensures usage of mobile device as a dedicated terminal. Once user transfers the design device connectivity is not required, which saves power as well. We have designed this application with all features of PC based marking application. User can create Datamatrix codes, Shift Codes, Dates Codes as well as customized codes effortlessly.

  • Marking area:  50×30 mm and 150 x 50mm
  • Battery: Standard off the shelf battery giving upto 8 hours of normal working
  • Guides: Linear guide on both axes for uniform marking depth
  • Operates on Wi-Fi hotspot
  • Most User-friendly app
  • Excellent graphical preview of marking
  • Marks linear and circular text
  • Serial counter and date marking possible
  • User variable text feature
  • Different marking forces are possible
  • Data Matrix barcode marking possible
  • HPGL & DXF Logo is marked.
